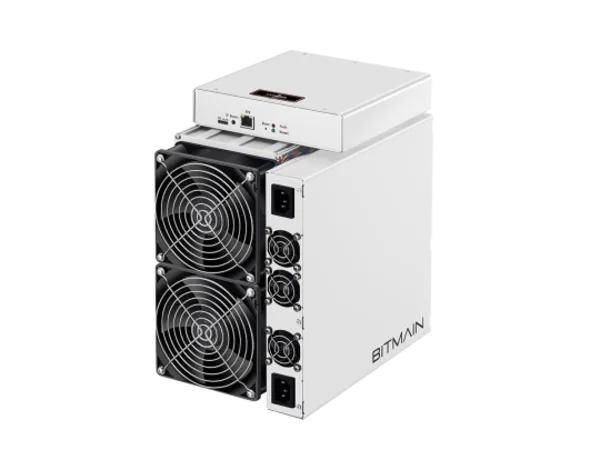

Antminer S17 (56Th)

Antminer S17 (56Th)
Hashrate Power Algorithm
56 Th/s 2520 W SHA-256

Model Antminer S17 manufactured by the Bitmain company uses the SHA-256 algorithm for mining, having a hashrate of 56 Th/s and 2520 Watts power consumption.

Daily Monthly Yearly
Income (Bitcoin) $2.53
0.00004091 BTC
$76.03
0.00122733 BTC
$925.09
0.01493254 BTC
Electricity -$7.26 -$217.73 -$2,649.02
Profit -4.72 -141.69 -1,723.94
Manufacturer Bitmain
Model Antminer S17 (56Th)
Also known as Antminer S17-56TH/s
Release April 2019
Size 178 x 296 x 298mm
Weight 9500g
Chip boards 3
Chip name BM1397
Chip size 7nm
Chip count 144
Noise level 82db
Fan(s) 4
Power 2520W
Voltage 12V
Interface Ethernet
Temperature 5 - 45 °C
Humidity 5 - 95 %

Minable coins

Bitcoin (BTC) SHA-256
Bitcoin (BTC)
BitcoinCash (BCH) SHA-256
BitcoinCash (BCH)
BitcoinSV (BSV) SHA-256
BitcoinSV (BSV)
Elastos (ELA) SHA-256
Elastos (ELA)
Namecoin (NMC) SHA-256
Namecoin (NMC)
Peercoin (PPC) SHA-256
Peercoin (PPC)
Xaya (CHI) SHA-256
Xaya (CHI)
Syscoin (SYS) SHA-256
Syscoin (SYS)
FileName FileSize Description Publish Date
ANTMINER-S17-user-OM-202004271323-sig_5835.tar.gz 16.47MB

MD5:e4e7ec538546d7674937ffe509cf48c6



Release Notes:

1. Enhance  anti-virus capability with  new security mechanism.

2. Add sleep mode.

3. Improve memory and temperature module.

4. Use new build tools to build firmware.

5. Remove the voltage calibration process.

6. Widen the scope of voltage difference inspection.
7. If upgrading the firmware through no keeping configuration file, it is need to configure miner account and miner pools to mine, otherwise(Upgrading through using keeping configuration file), it is no need to configure the miner and miner pools using previous miner settings to mine.



Upgrade method:

1. Check the current firmware version.
If the File System Version time is less than or equal to 2019,April 16, then
Upgrade the intermediate firmware V20190524 first.
Then upgrade the final firmware  V20200427.
update completed.
else
Directly upgrade the final firmware  V20200427.
update completed.
2. If you don't want to check the firmware version.
Upgrade firmware V20200427 directly.
If the mine upgrade is wrong: "Installer Not Signatured!!!" then
Upgrade the intermediate firmware V20190524  first.
Then upgrade the final firmware V20200427.
update completed.
else
update completed.

2020-01-07
ANTMINER-S17-user-MD-201905241706-sig.tar.gz 25.76MB

Intermediate firmware for S17

2019-05-29
